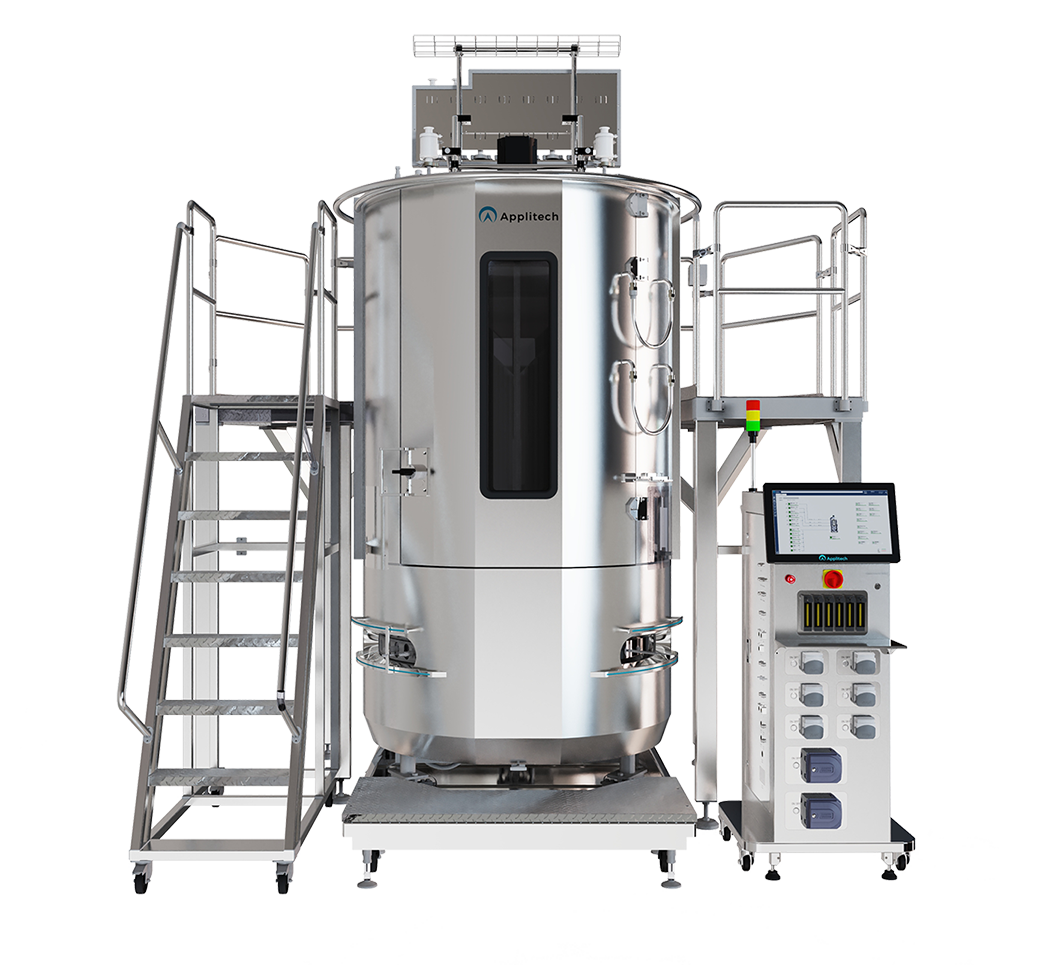

AbioSUS Single-Use Bioreactor
Applitech's AbioSUS replicates traditional stirred-tank bioreactor conditions to ensure seamless transitions across research, development, and production scale.
This system supports a wide range of upstream cell culture applications for antibodies, vaccines, and therapies through standard sizes ranging from 50L to 2000L and further customization options.
Key Components
Bag Holder
Design Features
- Top-mounted motor drive: Quick, convenient assembly/disassembly
- Large single-door holder: Easy culture bag loading/unloading
- Full double-layer jacket: uniform thermal control
- C6-grade load sensors: High-accuracy weight measurement
- Stainless-Steel Bag Holder
- Weighing Sensor Support Bracket
- Door with Observation Window
- Sensor Operation Area
- 50-2000 Liters Working Volume
IDS.DS Controller
- 18.5/21.5-inch HMI display
- Anti-mistouch + screen lock
- User access control: 5 levels with permissions & audit trail
- (View, Operator, Engineer, Supervisor, Administrator)
- Multi-loop control: Temperature, agitation, pH, DO
- Software-controlled bottom aeration paths
- Advanced cascade settings for parameter control
- Device integration: Pumps, MFCs, balances
- Customizable for client-specific configuration
- Small footprint and space-saving
- Built-in UPS power supply
Culture Bags
Design Features
- Flexible sensing: Supports reusable & single-use pH/DO
- Dual aeration system: 0.8 mm macro-bubble + 150 µm micro-bubble
- Enhanced mass transfer: Higher KLa, better pH control, reduced foam
- Customizable aeration ports: Types and specifications configurable
- Integrated inlet and outlet filters to avoid additional sterile connection
- Two marine blade impellers
Material Features
- 7-layer co-extruded film (320 µm) for high strength and durability
- Animal-component-free materials
- ULDPE inner layer for superior biocompatibility and flexibility
- Sterile, pyrogen-free, and highly gas-tight
- Compliant with USP Class VI and ISO 10993 standards
- Full material certification and traceability
- Customizable designs for specific process needs
